MPO Integrated Tester
    Publish time 2023-06-02 10:44

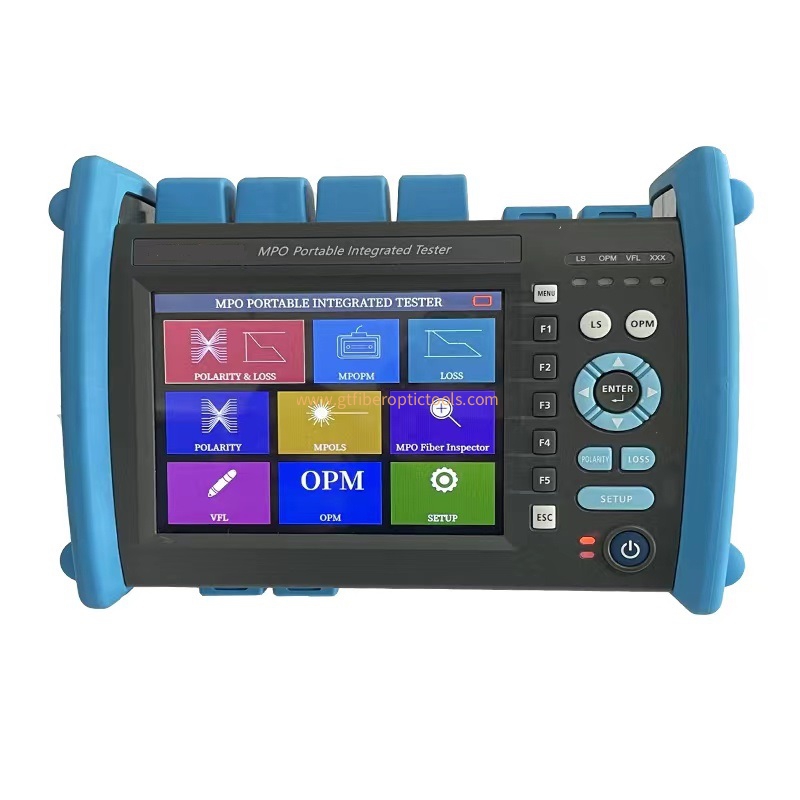

MPO Integrated Tester

Features:

n Support single instrument polarity and loss testing at the same time

n Support 24-core and 12-core testing

n 5.6 -inch LCD touch screen

n Support customizable pass or not in threshold

n Any of two instruments can remote different systems in pair

n Support USB end detector function (optional)

Technical Specifications

Type

GT352 MPO integrated tester

OLS

Wavelength

1550nm(optional)

Output power

≥-5dBm

Spectral width (FWHM)

≤5nm

Frequency

CW、270、1K、2KHZ

Power stability

≤±0.1

OPM

Detector type

InGaAs

Wavelength

850nm、1300nm、1310nm、1550nm

Measuring range

+3～-50 dBm

Power measurement linearity

±0.1 dB

Power measurement uncertainty

±0.25 dB

Port

MPO Male connector

Power unit

dBm、dB、xW

Resolution ratio

0.01dB

Polarity detection

A、B、C & user-defined

Record storage

Applied

General power meter

Wavelength test range

800～1700nm

Wavelength

850/1300/1310/1490/1550/1625nm

Measuring range

+26 ～ -50 dBm

Uncertainty

≤ 0.25 dB

VFL

Wavelength

650nm

Output power

10mW

Other

Display size

5.6-inch TFT color screen

Power supply

7.4V 4000mAh lithium battery/Micro USB

Automatic shutdown time

user-defined optional

Low battery warning

Icon flashing

Communication interface

Micro USB

Operating temperature（℃）

-10～+60

Storage temperature（℃）

-25～+70

Dimension(mm)

260×155×73

Weight(g)

1250
