LC UPC Fiber Optic Polishing Jig 52 Positions
    Publish time 2019-08-28 14:36

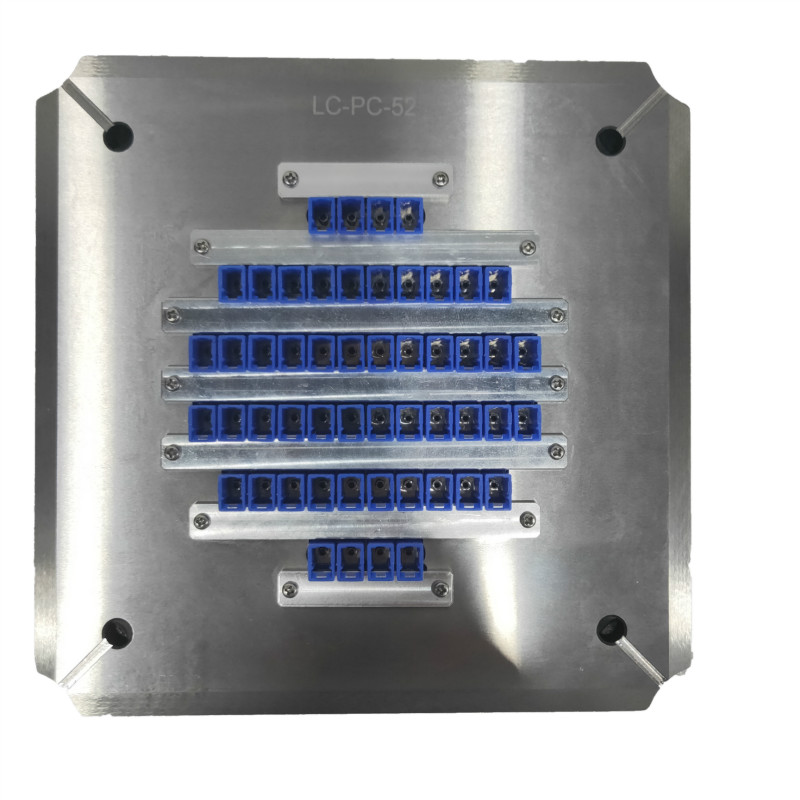

LC UPC Fiber Optic Polishing Jig 52 Positions

LC/UPC Connector Type Fiber Optic Polishing Jig 52 Positions



Model Number: LC-PC-52

Country of Origin: China (mainland)

Brand Name: Neofibo



Key Feature:

1. Designed for LC/PCconnector polishing

2. Easy to change jigs, simple and flexible to operate.

3. High efficiency, polishing Max 52 LC/UPC connectors in one cycle.

4. Excellent connector end-face polishing quality.



Applications:

1. Polishing LC UPC connector on patch cords

2. LC UPC connector polishing on pigtail

3. Polishing LC UPC connector on attenuator.



Specification:

Model

LC-PC-52

Brand


Application

Polishing assembled LC/UPC connectors

Connector Type

LC/UPC, LC/PC

Capacity

52 positions

End face

UPC, SPC, PC

Ceramic Ferrule Diameter

Diameter 1.25 mm

Color

Silver

Material

Stainless Steel

Dimension (L*W*H)

174*174*26 mm

Net Weight  (kg)

1.5 kgs

Gross Weight (kg)

2.0 kgs

Suitable machines

SFP-550
