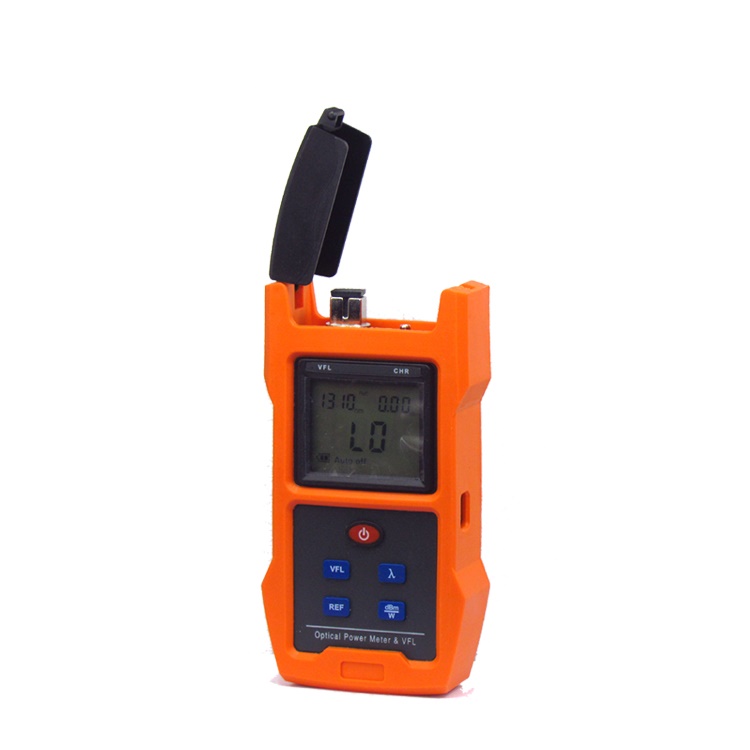

GTF-2N 2 IN 1 VFL and Power Meter
    Publish time 2019-03-06 13:35
GTF-2N 2 IN 1 VFL and Power Meter

Features

n Self Calibration

n Set the Auto Off

n Wavelength Memory function after turn off the tester

n High Accuracy, high ,High sensitivity, high linearity

n Stable VFL Output

n USB Charge port

n FC,SC Connector

n 18650Li-ion Battery

n Lower power consumption design, long standby time

Rubber Out shell, increased the protective properties for field work

Optical Power Meter

Detector Type

InGaAs

Optical Connector

SC/FC & 2.5mm Universal

Calibrated Wavelengths

850,1300,1310,1490,1550,1625 nm

Measurement Range

+6 ~ -70 dBm

Accuracy

±0.2 dB

Power Measurement Linearity

±0.1 dB

Display Resolution

±0.01 dB

Power Display Units

dBm, mW, uW

Visual Fault Locator

Output power

1mw/10MW/20mw/30mw

Range

12-km@SM

Connector

2.5mm Universal

Laser safety rating

Class 2

Wavelength

650nm±20nm

Output modes

Continuous (CW),2 Hz pulsed

Reverse battery protection

Yes

Others

Power Supply

18650 Li-con battery

Auto Off

10 minutes

Working time

>200hours（only OPM Work）

≥50 hours（10mWVFL & OPM Work meanwhile）

Working Temperature

-10~+45

Weight

250g

Dimensions

160*75*10mm
