Ribbon Fiber Fusion Splicer


New Model Ribbon Fiber Fusion Splicer

Ribbon fiber fusion splicer is with the latest accurate fiber alignment technology, it has very stable performance and low fusion loss, it is suitable for different fiber optical projects and various environmental conditions





Features

※Applicable to 2-12 ribbon fiber splicing
※ Accurate alignment, world standard fusion loss
※ 20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s
※ Applicable to different types fibers (SM/MM/DS/NZDS)
※ Ruggedized body, waterproof, anti-dust, anti-shock
※ Pluggable Li-battery, support separate charging
※ Easy to maintenance, easy to replace the electrodes
※ USB port for software upgrading, records exporting
※ Support 4000/100 groups fusion records/fusion images

※ Comply with CE/Rohs international standard

Alignment method

Clad to clad

Applicable fiber

SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655)

Fiber cores quantity

Single core，2-12 cores

Diameter of coating

250～400µm

Typical splice loss

SM: 0.05dB；MM: 0.02dB；DS: 0.08dB；NZDS: 0.08dB

Return loss

＞60dB

Splicing program

40 groups

Operation mode

Manual/ Automatic

Auto- heating

Available

Typical splice time

20 seconds

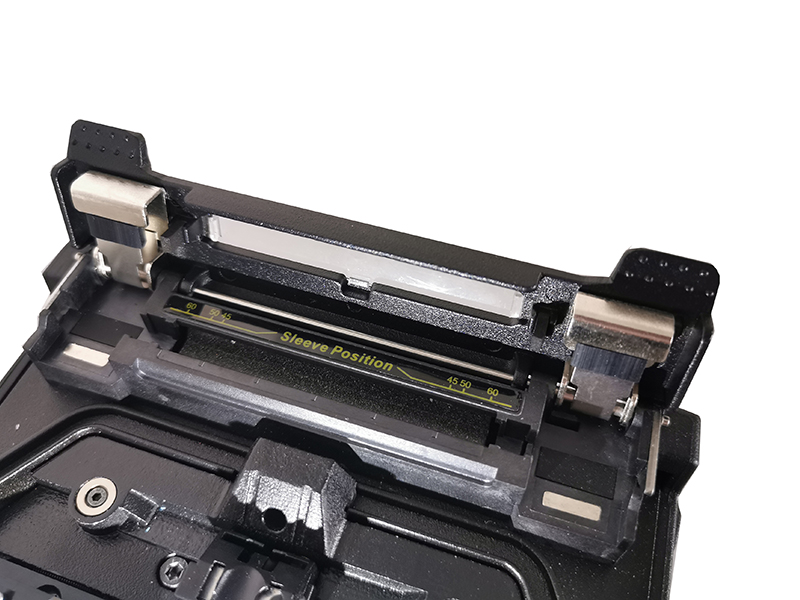

Typical heating time

1-2 cores 26 seconds，4-12 cores 40 seconds

Fiber magnification

25X

Viewing display

Dual high sensitivity camera, 5 inch 800*480 LCD Monitor

Data storage

4000 groups data records and 100 group images

Loss evaluation

Available

Tension test

1.8～2.2N

Interface

GUI menu interface, easy for operation

Battery capacity

5200mAh Li-battery, 150 cycles splicing and heating

Power supply

Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V

Electrode life

More than 3000 ARC discharges, easy to replace

Terminals

USB 2.0 port, for software upgrading, records exporting

Operating condition

Altitude:0-5000m,Humidity:0-95%,
Temperature:-10℃～+50℃;
Wind:max15m/s


Dimension/Weight

155mm (L)×144mm (W)×155mm (H) /2.3kg (including battery)
